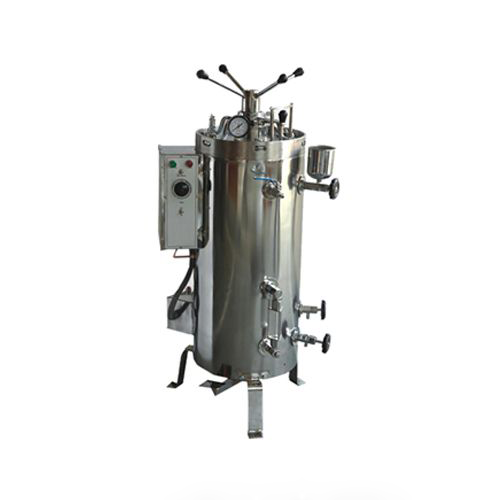

Vertical Autoclave Machine

Our vertical autoclave are widely used for the day to day sterilization procedures and in various laboratory applications.We specialize in both standard and customized models, specifically designed to meet the challenging demands of various scientists for individual and specialized research applications. Apart from that we are supplying our economy autoclave in India catering to variety of customers ranging from Defense Installations,Research Laboratories and Educational Institutes and various R&D laboratories of leading national and multinational companies.

Standard models of Vertical autoclave units manufactured by HS Mede World are available with chamber volumes of 22 liters to 175 liters that accommodate two and three drums accordingly. These systems are designed for meeting effective sterilization requirements in bacteriological and research laboratories, hospitals and clinics and food and beverage units. The vertical chamber design maximizes space utilization, while microprocessor control system enables comfortable working all the time you operate the machine.

Construction :

Our vertical autoclave are double walled units. Outer of our autoclave is constructed out of thick PCRC sheet duly pre-treated with primers and rust proofing and painted with lasting stove enamel or elegantly powder coated. The inner chamber is made of heavy gauge stainless steel of ss 304 grade .Our autoclaves are air insulated from inside, however we may incorporate mineral glass wool insulation if the customer desires so. The strong lid constructed out of thick steel plate which is lined with stainless steel sheet of ss-304 grade has a locking arrangement, which ensures an easy and smppth opening and closing operation for all autoclaves. Our vertical enclaves are ideally suited for hospitals and research labs where safety is the priority of the user since it is equipped with a double safety steam releases valve. At the same time we test all our protection from any unfortunate incident. All our vertical autoclave are supplied complete with pressure gauge, pressure release valve and stainless steel basket as a standard feature.

Heating :

The heating process in our vertical is autoclave is done through specially water heater of suitable wattage to ensure optimum sterilization time in every sterilization cycle.

Working Temperature :

Asper the international standards and guidelines our vertical autoclave have a working temperature of 121oC However for specific requirement our be upgraded to be used for up to 134oC.

Working Pressure :

Working pressure for our standard model vertical autoclave is 15 psi,however this can be upgraded to be used for higher pressure of up to 30 psi.

Pressure Range :

The normal pressure range of our autoclave is 5 psi to 20 psi

Pressure Control :

The pressure inside our vertical autoclave can be controlled throughout a semi automatic electro mechanical device called piezostat,which controls the pressure inside the chamber and cuts of the current from the heater whenever the pressure exceeds the set pressure valve of the autoclave, thus making it very safe and energy efficient.
